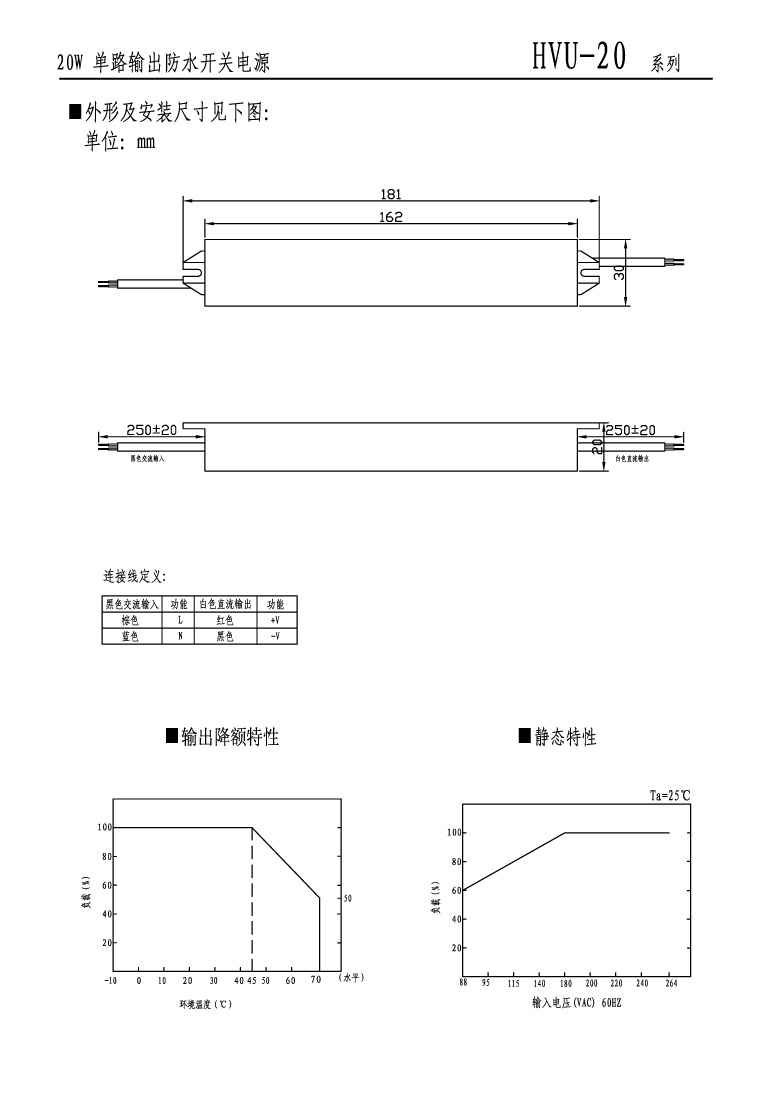

HVU-20 Introduction: Waterproof IP67, Input Voltage Range 88 - 264 VAC 47-63Hz; 125-370VDC, impulse current, cold start current 36A/230VAC, features: high efficiency, high reliability, low cost, protection characteristics: short circuit, overload, high temperature, working frequency: 65KHz, 1 year shelf life.
Protection characteristics | | | Protection mode: Hiccup mode, automatic recovery | | Operating temperature, humidity | | Store at temperature and humidity | | | 10~500Hz, 2G 10min./1 cycle, duration 60 minutes, each axis | | | Input/output room: 1.5KVAC Input and ground: 1.5KVAC Output and ground: 0.5KVAC | | Input/output room, input and ground, output and ground: 100M Ohms / 500VDC | | | EN61347-1 EN61347-2-13 IP67 | | EN55015 EN61547 EN 61000-3-2/3 EN61000-4-2/3/4/5/6/8/11 | | | | | 100PCS/23Kg/0.033 cubic meters | | 1. All parameters are measured at 230VAC input, rated load and 25°C unless otherwise specified.
2. Ripple and noise voltages are measured at a 20MHz bandwidth oscilloscope with 12-inch twisted pair ends plus 0.1μ and 47μ capacitors.
3. Tolerance is the sum of voltage setting error, voltage regulation, and current regulation. |
 The above is the Taiwan brand Meanwell/Meanwell HVU-20 rainproof power supply, the product is waterproof IP67, the input voltage range is 88-264 VAC 47-63Hz; 125-370VDC, impulse current, cold start current 36A/230VAC, features: high efficiency, high reliability, low cost, protection characteristics: short circuit, overload, high temperature, working frequency: 65KHz, 1 year shelf life. Our company adheres to the needs of customers, which is our pursuit, and the pursuit of quality is our responsibility. You can rest assured that you can inquire and purchase, if it meets your needs, please come to consult. |
